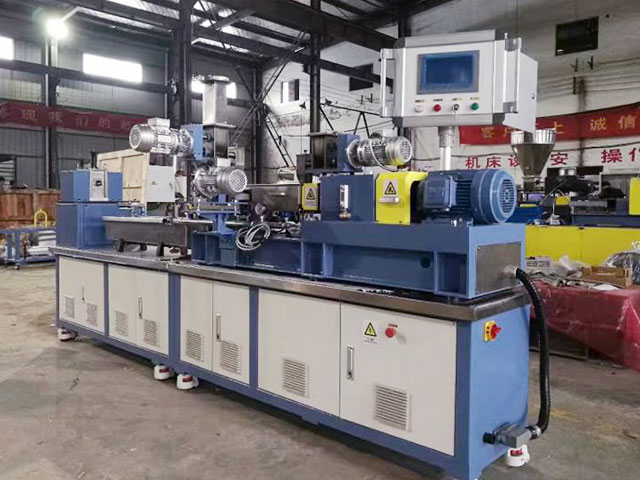

Special explanation of this twin screw extruder
A: normal series (n≤500r/min, T/A3∠6)
B: high speed series(n≥600r/min, T/A3∠6)
C: high torque series(n≤500r/min, T/A3≥8)
D: high speed and high torque series(n≥600r/min, T/A3≥8)
Applications:
Enforcing modification: PE,EVA etc + CaCo3,Talc,TiO2,Carbon black .
Degradable master batch: PE, PS etc. + starch, additive etc.
Anti-flame master batch: PE, EVA etc. +Sb2O3, Mg (OH) 2, Al2 (OH)3 etc .
Special explanation of this twin screw extruder
A: normal series (n≤500r/min, T/A3∠6)
B: high speed series(n≥600r/min, T/A3∠6)
C: high torque series(n≤500r/min, T/A3≥8)
D: high speed and high torque series(n≥600r/min, T/A3≥8)
Applications:
Enforcing modification: PE,EVA etc + CaCo3,Talc,TiO2,Carbon black .
Degradable master batch: PE, PS etc. + starch, additive etc.
Anti-flame master batch: PE, EVA etc. +Sb2O3, Mg (OH) 2, Al2 (OH)3 etc .
Model | L/D | Rotating Speed(r/min) | Motor power kw | Torque Nm | Torque level T/A3 | Through put kg/h | |
UTSE 36 | A | 32~64 | 400 | 11 | 125 | 4.6 | 30~60 |
B | 32~64 | 600 | 15 | 115 | 4.2 | 40~80 | |
C | 32~64 | 400 | 18.5 | 220 | 7.7 | 50~90 | |
32~64 | 500 | 22 | 210 | 7.3 | 60~110 | ||
D | 32~64 | 600 | 30 | 230 | 8 | 90~150 | |
32~64 | 800 | 37 | 220 | 7.7 | 110~180 | ||
Model | L/D | Rotating Speed(r/min) | Motor power kw | Torque Nm | Torque level T/A3 | Through put kg/h | |
UTSE 36 | A | 32~64 | 400 | 11 | 125 | 4.6 | 30~60 |
B | 32~64 | 600 | 15 | 115 | 4.2 | 40~80 | |
C | 32~64 | 400 | 18.5 | 220 | 7.7 | 50~90 | |
32~64 | 500 | 22 | 210 | 7.3 | 60~110 | ||
D | 32~64 | 600 | 30 | 230 | 8 | 90~150 | |
32~64 | 800 | 37 | 220 | 7.7 | 110~180 | ||
